#!/usr/bin/env python
"""

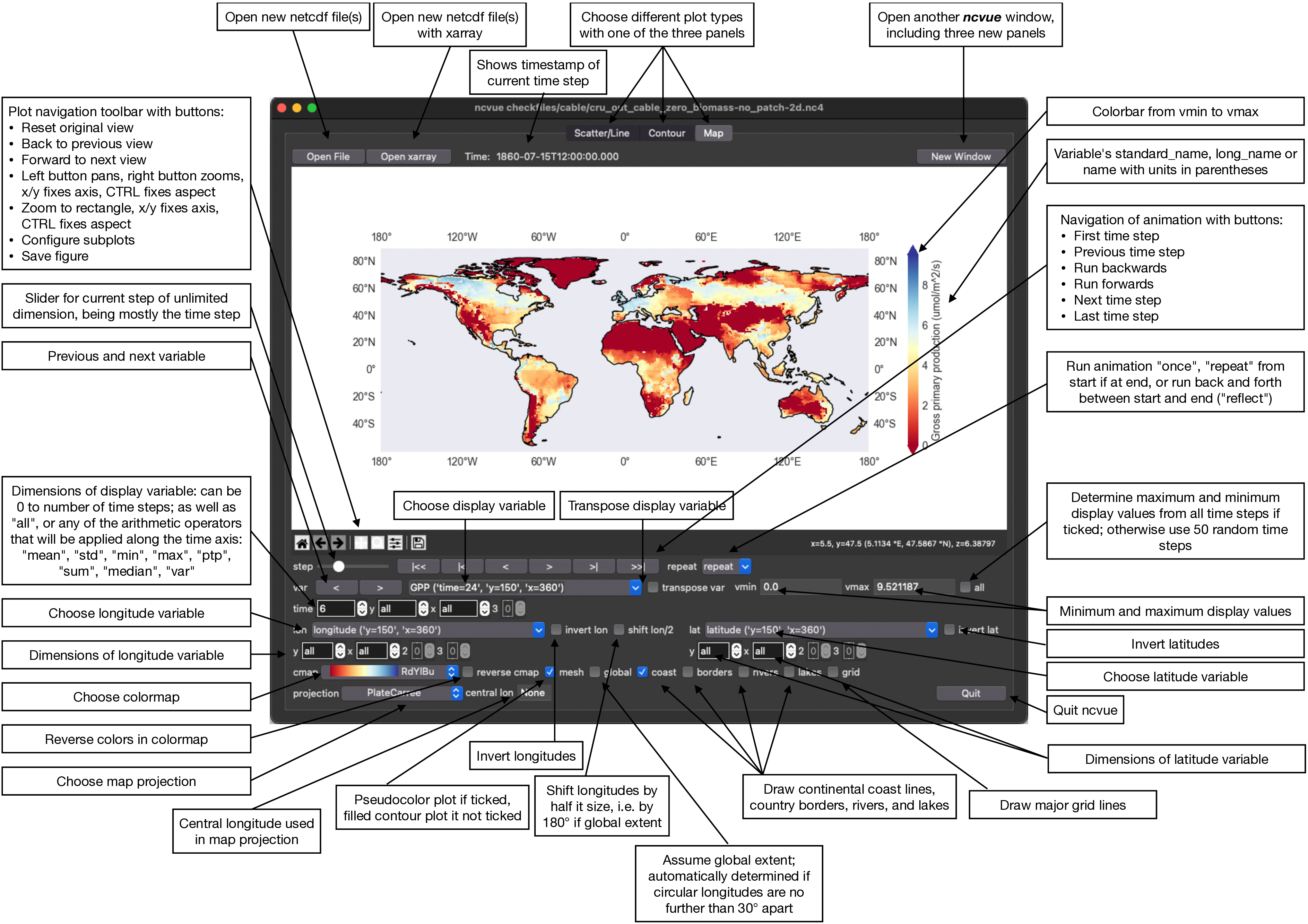

Map panel of ncvue.
The panel allows plotting contour or mesh maps of georeferenced data.
Maps can be animated along the time axis.
This module was written by Matthias Cuntz while at Institut National de
Recherche pour l'Agriculture, l'Alimentation et l'Environnement (INRAE), Nancy,
France.
Copyright (c) 2020-2021 Matthias Cuntz - mc (at) macu (dot) de
Released under the MIT License; see LICENSE file for details.
History:
* Written Dec 2020-Jan 2021 by Matthias Cuntz (mc (at) macu (dot) de)
* Open new netcdf file, communicate via top widget, Jan 2021, Matthias Cuntz
.. moduleauthor:: Matthias Cuntz
The following classes are provided:
.. autosummary::
ncvMap
"""
from __future__ import absolute_import, division, print_function
import sys
import tkinter as tk
try:
import tkinter.ttk as ttk
except Exception:
print('Using the themed widget set introduced in Tk 8.5.')
sys.exit()
from tkinter import filedialog
import os
import numpy as np
import netCDF4 as nc
from .ncvutils import add_cyclic_point, clone_ncvmain, set_axis_label
from .ncvutils import set_miss, vardim2var
from .ncvmethods import analyse_netcdf, get_slice_miss, get_miss
from .ncvmethods import set_dim_lon, set_dim_lat, set_dim_var
from .ncvwidgets import add_checkbutton, add_combobox, add_entry, add_imagemenu
from .ncvwidgets import add_menu, add_scale, add_spinbox, add_tooltip
import matplotlib as mpl
mpl.use('TkAgg')
from matplotlib import pyplot as plt
plt.style.use('seaborn-darkgrid')
import cartopy.crs as ccrs
__all__ = ['ncvMap']
[docs]class ncvMap(ttk.Frame):
"""
Panel for maps.
Sets up the layout with the figure canvas, variable selectors, dimension
spinboxes, and options in __init__.
Contains various commands that manage what will be drawn or redrawn if
something is selected, changed, checked, etc.
"""
#
# Panel setup
#
def __init__(self, master, **kwargs):
from functools import partial
from matplotlib.backends.backend_tkagg import FigureCanvasTkAgg
from matplotlib.backends.backend_tkagg import NavigationToolbar2Tk
from matplotlib.figure import Figure
from matplotlib import animation
super().__init__(master, **kwargs)
self.name = 'Map'
self.master = master
self.top = master.top
# copy for ease of use
self.fi = self.top.fi
self.miss = self.top.miss
self.dunlim = self.top.dunlim
self.time = self.top.time
self.tname = self.top.tname
self.tvar = self.top.tvar
self.dtime = self.top.dtime
self.latvar = self.top.latvar
self.lonvar = self.top.lonvar
self.latdim = self.top.latdim
self.londim = self.top.londim
self.maxdim = self.top.maxdim
self.cols = self.top.cols
# unlimited dimension control
self.iunlim = -1 # index of dunlim in dimensions of current var
self.nunlim = 0 # length of dunlim of current plot variable
# new window
self.rowwin = ttk.Frame(self)
self.rowwin.pack(side=tk.TOP, fill=tk.X)
self.newfile = ttk.Button(self.rowwin, text="Open File",
command=self.newnetcdf)
self.newfile.pack(side=tk.LEFT)
self.newfiletip = add_tooltip(self.newfile, 'Open a new netcdf file')
spacew = ttk.Label(self.rowwin, text=" "*3)
spacew.pack(side=tk.LEFT)
time_label1 = ttk.Label(self.rowwin, text='Time: ')
time_label1.pack(side=tk.LEFT)
self.timelbl = tk.StringVar()
self.timelbl.set('')
time_label2 = ttk.Label(self.rowwin, textvariable=self.timelbl)
time_label2.pack(side=tk.LEFT)
self.newwin = ttk.Button(
self.rowwin, text="New Window",
command=partial(clone_ncvmain, self.master))
self.newwin.pack(side=tk.RIGHT)
self.newwintip = add_tooltip(
self.newwin, 'Open secondary ncvue window')
# plotting canvas
self.figure = Figure(facecolor="white", figsize=(1, 1))
# self.axes = self.figure.add_subplot(111)
self.axes = self.figure.add_subplot(111,
projection=ccrs.PlateCarree())
self.canvas = FigureCanvasTkAgg(self.figure, master=self)
self.canvas.draw()
# pack
self.canvas.get_tk_widget().pack(side=tk.TOP, fill=tk.BOTH, expand=1)
# grid instead of pack - does not work
# self.canvas.get_tk_widget().grid(column=0, row=0,
# sticky=(tk.N, tk.S, tk.E, tk.W))
# self.canvas.get_tk_widget().columnconfigure(0, weight=1)
# self.canvas.get_tk_widget().rowconfigure(0, weight=1)
# matplotlib toolbar
self.toolbar = NavigationToolbar2Tk(self.canvas, self)
self.toolbar.update()
self.toolbar.pack(side=tk.TOP, fill=tk.X)
# selections and options
columns = [''] + self.cols
allcmaps = plt.colormaps()
self.cmaps = [ i for i in allcmaps if not i.endswith('_r') ]
self.cmaps.sort()
# self.imaps = [ tk.PhotoImage(file=os.path.dirname(__file__) +
# '/images/' + i + '.png')
# for i in self.cmaps ]
bundle_dir = getattr(sys, '_MEIPASS',
os.path.abspath(os.path.dirname(__file__)))
self.imaps = [ tk.PhotoImage(file=bundle_dir +
'/images/' + i + '.png')
for i in self.cmaps ]
# only projections with keyword: central_longitude
self.projs = ['AlbersEqualArea', 'AzimuthalEquidistant', 'EckertI',
'EckertII', 'EckertIII', 'EckertIV', 'EckertV',
'EckertVI', 'EqualEarth', 'EquidistantConic',
'InterruptedGoodeHomolosine',
'LambertAzimuthalEqualArea', 'LambertConformal',
'LambertCylindrical', 'Mercator', 'Miller', 'Mollweide',
'NorthPolarStereo', 'PlateCarree', 'Robinson',
'Sinusoidal', 'SouthPolarStereo', 'Stereographic']
self.iprojs = [ccrs.AlbersEqualArea, ccrs.AzimuthalEquidistant,
ccrs.EckertI, ccrs.EckertII, ccrs.EckertIII,
ccrs.EckertIV, ccrs.EckertV, ccrs.EckertVI,
ccrs.EqualEarth, ccrs.EquidistantConic,
ccrs.InterruptedGoodeHomolosine,
ccrs.LambertAzimuthalEqualArea, ccrs.LambertConformal,
ccrs.LambertCylindrical, ccrs.Mercator, ccrs.Miller,
ccrs.Mollweide, ccrs.NorthPolarStereo, ccrs.PlateCarree,
ccrs.Robinson, ccrs.Sinusoidal, ccrs.SouthPolarStereo,
ccrs.Stereographic]
# 1. row
# controls
self.rowt = ttk.Frame(self)
self.rowt.pack(side=tk.TOP, fill=tk.X)
ntime = 1
self.tsteplbl, self.tstepval, self.tstep, self.tsteptip = add_scale(
self.rowt, label="step", ini=0, from_=0, to=ntime,
length=100, orient=tk.HORIZONTAL, command=self.tstep_t,
tooltip="Slide to go to time step")
spacet = ttk.Label(self.rowt, text=" "*1)
spacet.pack(side=tk.LEFT)
# first t
self.first_t = ttk.Button(self.rowt, text="|<<", width=3,
command=self.first_t)
self.first_t.pack(side=tk.LEFT)
self.first_ttip = add_tooltip(self.first_t, 'First time step')
# previous t
self.prev_t = ttk.Button(self.rowt, text="|<", width=2,
command=self.prev_t)
self.prev_t.pack(side=tk.LEFT)
self.prev_ttip = add_tooltip(self.prev_t, 'Previous time step')
# run t backwards
self.prun_t = ttk.Button(self.rowt, text="<", width=1,
command=self.prun_t)
self.prun_t.pack(side=tk.LEFT)
self.prun_ttip = add_tooltip(self.prun_t, 'Run backwards')
# pause t
self.pause_t = ttk.Button(self.rowt, text="||", width=1,
command=self.pause_t)
self.pause_t.pack(side=tk.LEFT)
self.pause_ttip = add_tooltip(self.pause_t, 'Pause/Stop')
# run t forward
self.nrun_t = ttk.Button(self.rowt, text=">", width=1,
command=self.nrun_t)
self.nrun_t.pack(side=tk.LEFT)
self.nrun_ttip = add_tooltip(self.nrun_t, 'Run forwards')
# next t
self.next_t = ttk.Button(self.rowt, text=">|", width=2,
command=self.next_t)
self.next_t.pack(side=tk.LEFT)
self.next_ttip = add_tooltip(self.next_t, 'Next time step')
# last t
self.last_t = ttk.Button(self.rowt, text=">>|", width=3,
command=self.last_t)
self.last_t.pack(side=tk.LEFT)
self.last_ttip = add_tooltip(self.last_t, 'Last time step')
# repeat
spacer = ttk.Label(self.rowt, text=" "*1)
spacer.pack(side=tk.LEFT)
reps = ['once', 'repeat', 'reflect']
tstr = "Run time steps once, repeat from start when at end,"
tstr += " or continue running backwards when at end"
self.repeatlbl, self.repeat, self.repeattip = add_combobox(
self.rowt, label="repeat", values=reps, width=5,
command=self.repeat_t, tooltip=tstr)
self.repeat.set('repeat')
self.last_t.pack(side=tk.LEFT)
# delay
spaced = ttk.Label(self.rowt, text=" "*1)
spaced.pack(side=tk.LEFT)
tstr = "Delay run between time steps from 1 to 1000 ms"
self.delaylbl, self.delayval, self.delay, self.delaytip = add_scale(
self.rowt, label="delay (ms)", ini=1, from_=1, to=1000,
length=100, orient=tk.HORIZONTAL, command=self.delay_t,
tooltip=tstr)
# 2. row
# variable-axis selection
self.rowvv = ttk.Frame(self)
self.rowvv.pack(side=tk.TOP, fill=tk.X)
self.blockv = ttk.Frame(self.rowvv)
self.blockv.pack(side=tk.LEFT)
self.rowv = ttk.Frame(self.blockv)
self.rowv.pack(side=tk.TOP, fill=tk.X)
self.vlbl = tk.StringVar()
self.vlbl.set("var")
vlab = ttk.Label(self.rowv, textvariable=self.vlbl)
vlab.pack(side=tk.LEFT)
self.bprev_v = ttk.Button(self.rowv, text="<", width=1,
command=self.prev_v)
self.bprev_v.pack(side=tk.LEFT)
self.bprev_vtip = add_tooltip(self.bprev_v, 'Previous variable')
self.bnext_v = ttk.Button(self.rowv, text=">", width=1,
command=self.next_v)
self.bnext_v.pack(side=tk.LEFT)
self.bnext_vtip = add_tooltip(self.bnext_v, 'Next variable')
self.v = ttk.Combobox(self.rowv, values=columns, width=25)
self.v.bind("<<ComboboxSelected>>", self.selected_v)
self.v.pack(side=tk.LEFT)
self.vtip = add_tooltip(self.v, 'Choose variable')
self.trans_vlbl, self.trans_v, self.trans_vtip = add_checkbutton(
self.rowv, label="transpose var", value=False,
command=self.checked,
tooltip="Transpose array, i.e. exchanging lat and lon")
spacev = ttk.Label(self.rowv, text=" "*1)
spacev.pack(side=tk.LEFT)
self.vminlbl, self.vmin, self.vmintip = add_entry(
self.rowv, label="vmin", text=0, width=11, command=self.entered_v,
tooltip="Minimal display value")
self.vmaxlbl, self.vmax, self.vmaxtip = add_entry(
self.rowv, label="vmax", text=1, width=11, command=self.entered_v,
tooltip="Maximal display value")
tstr = "If checked, determine vmin/vmax from all fields,\n"
tstr += "otherwise from 50 random fields"
self.valllbl, self.vall, self.valltip = add_checkbutton(
self.rowv, label="all", value=False, command=self.checked_all,
tooltip=tstr)
# levels var
self.rowvd = ttk.Frame(self.blockv)
self.rowvd.pack(side=tk.TOP, fill=tk.X)
self.vdlblval = []
self.vdlbl = []
self.vdval = []
self.vd = []
self.vdtip = []
for i in range(self.maxdim):
vdlblval, vdlbl, vdval, vd, vdtip = add_spinbox(
self.rowvd, label=str(i), values=(0,), wrap=True,
command=self.spinned_v, state=tk.DISABLED, tooltip="None")
self.vdlblval.append(vdlblval)
self.vdlbl.append(vdlbl)
self.vdval.append(vdval)
self.vd.append(vd)
self.vdtip.append(vdtip)
# 3. row
# lon-axis selection
self.rowll = ttk.Frame(self)
self.rowll.pack(side=tk.TOP, fill=tk.X)
self.blocklon = ttk.Frame(self.rowll)
self.blocklon.pack(side=tk.LEFT)
self.rowlon = ttk.Frame(self.blocklon)
self.rowlon.pack(side=tk.TOP, fill=tk.X)
self.lonlbl, self.lon, self.lontip = add_combobox(
self.rowlon, label="lon", values=columns,
command=self.selected_lon,
tooltip="Longitude variable.\nSet 'empty' for matrix plot.")
self.inv_lonlbl, self.inv_lon, self.inv_lontip = add_checkbutton(
self.rowlon, label="invert lon", value=False,
command=self.checked,
tooltip="Invert longitudes")
self.shift_lonlbl, self.shift_lon, self.shift_lontip = add_checkbutton(
self.rowlon, label="shift lon/2", value=False,
command=self.checked,
tooltip="Roll longitudes by half its size")
self.rowlond = ttk.Frame(self.blocklon)
self.rowlond.pack(side=tk.TOP, fill=tk.X)
self.londlblval = []
self.londlbl = []
self.londval = []
self.lond = []
self.londtip = []
for i in range(self.maxdim):
londlblval, londlbl, londval, lond, londtip = add_spinbox(
self.rowlond, label=str(i), values=(0,), wrap=True,
command=self.spinned_lon, state=tk.DISABLED, tooltip="None")
self.londlblval.append(londlblval)
self.londlbl.append(londlbl)
self.londval.append(londval)
self.lond.append(lond)
self.londtip.append(londtip)
# lat-axis selection
spacex = ttk.Label(self.rowll, text=" "*3)
spacex.pack(side=tk.LEFT)
self.blocklat = ttk.Frame(self.rowll)
self.blocklat.pack(side=tk.LEFT)
self.rowlat = ttk.Frame(self.blocklat)
self.rowlat.pack(side=tk.TOP, fill=tk.X)
self.latlbl, self.lat, self.lattip = add_combobox(
self.rowlat, label="lat", values=columns,
command=self.selected_lat,
tooltip="Longitude variable.\nSet 'empty' for matrix plot.")
self.inv_latlbl, self.inv_lat, self.inv_lattip = add_checkbutton(
self.rowlat, label="invert lat", value=False, command=self.checked,
tooltip="Invert longitudes")
self.rowlatd = ttk.Frame(self.blocklat)
self.rowlatd.pack(side=tk.TOP, fill=tk.X)
self.latdlblval = []
self.latdlbl = []
self.latdval = []
self.latd = []
self.latdtip = []
for i in range(self.maxdim):
latdlblval, latdlbl, latdval, latd, latdtip = add_spinbox(
self.rowlatd, label=str(i), values=(0,), wrap=True,
command=self.spinned_lat, state=tk.DISABLED, tooltip="None")
self.latdlblval.append(latdlblval)
self.latdlbl.append(latdlbl)
self.latdval.append(latdval)
self.latd.append(latd)
self.latdtip.append(latdtip)
# 4. row
# options
self.rowcmap = ttk.Frame(self)
self.rowcmap.pack(side=tk.TOP, fill=tk.X)
self.cmaplbl, self.cmap, self.cmaptip = add_imagemenu(
self.rowcmap, label="cmap", values=self.cmaps,
images=self.imaps, command=self.selected_cmap,
tooltip="Choose colormap")
self.cmap['text'] = 'RdYlBu'
self.cmap['image'] = self.imaps[self.cmaps.index('RdYlBu')]
self.rev_cmaplbl, self.rev_cmap, self.rev_cmaptip = add_checkbutton(
self.rowcmap, label="reverse cmap", value=False,
command=self.checked,
tooltip="Reverse colormap")
self.meshlbl, self.mesh, self.meshtip = add_checkbutton(
self.rowcmap, label="mesh", value=True,
command=self.checked,
tooltip="Pseudocolor plot if checked, plot contours if unchecked")
self.igloballbl, self.iglobal, self.iglobaltip = add_checkbutton(
self.rowcmap, label="global", value=False,
command=self.checked,
tooltip="Assume global extent")
self.coastlbl, self.coast, self.coasttip = add_checkbutton(
self.rowcmap, label="coast", value=True,
command=self.checked,
tooltip="Draw continental coast lines")
self.gridlbl, self.grid, self.gridtip = add_checkbutton(
self.rowcmap, label="grid", value=False,
command=self.checked,
tooltip="Draw major grid lines")
# 7. row
# projections
self.rowproj = ttk.Frame(self)
self.rowproj.pack(side=tk.TOP, fill=tk.X)
self.projlbl, self.proj, self.projtip = add_menu(
self.rowproj, label="projection", values=self.projs,
command=self.selected_proj, width=26,
tooltip="Choose projection")
self.proj['text'] = 'PlateCarree'
tstr = "Central longitude of projection.\n"
tstr += "Determined from longitude variable if None."
self.clonlbl, self.clon, self.clontip = add_entry(
self.rowproj, label="central lon", text='None', width=4,
command=self.entered_clon, tooltip=tstr)
# set lat/lon
if self.latvar:
self.lat.set(self.latvar)
self.inv_lat.set(0)
set_dim_lat(self)
if self.lonvar:
self.lon.set(self.lonvar)
self.inv_lon.set(0)
self.shift_lon.set(0)
set_dim_lon(self)
# set global
x = self.lon.get()
if (x != ''):
vx = vardim2var(x)
xx = self.fi.variables[vx]
xx = get_slice_miss(self, self.lond, xx)
xx = (xx + 360.) % 360.
if (xx.max() - xx.min()) > 150.:
self.iglobal.set(1)
else:
self.iglobal.set(0)
# animation
rep = self.repeat.get()
if rep == 'repeat':
irepeat = True
else:
irepeat = False
self.anim_first = True # True: stops in self.update at first call
self.anim_running = True # True/False: animation running or not
self.anim_inc = 1 # 1/-1: forward or backward run
self.anim = animation.FuncAnimation(self.figure, self.update,
init_func=self.redraw,
interval=self.delayval.get(),
repeat=irepeat)
#
# Bindings
#
[docs] def checked(self):
"""
Command called if any checkbutton was checked or unchecked.
Redraws plot.
"""
self.redraw()
[docs] def checked_all(self):
"""
Command called if any checkbutton 'all' for vmin/vmax was checked or
unchecked.
Resets vmin/vmax, redraws plot.
"""
vmin, vmax = self.get_vminmax()
self.vmin.set(vmin)
self.vmax.set(vmax)
self.redraw()
[docs] def delay_t(self, delay):
"""
Command called if delay scale was changed.
`delay` is the chosen value on the scale slider.
"""
self.anim.event_source.interval = int(float(delay))
[docs] def entered_clon(self, event):
"""
Command called if values central longitude was entered.
Triggering `event` was bound to entry.
Redraws plot.
"""
self.redraw()
[docs] def entered_v(self, event):
"""
Command called if values for `vmin`/`vmax` were entered.
Triggering `event` was bound to entry.
Redraws plot.
"""
self.redraw()
[docs] def first_t(self):
"""
Command called if first frame button was pressed.
"""
it = 0
self.set_tstep(it)
self.update(it, isframe=True)
[docs] def last_t(self):
"""
Command called if last frame button was pressed.
"""
it = self.nunlim - 1
self.set_tstep(it)
self.update(it, isframe=True)
[docs] def newnetcdf(self):
"""
Open a new netcdf file and connect it to top.
"""
# stop animation if running
if self.anim_running:
self.anim.event_source.stop()
self.anim_running = False
# get new netcdf file name
ncfile = filedialog.askopenfilename(
parent=self, title='Choose netcdf file', multiple=False)
if ncfile:
# close old netcdf file
if self.top.fi:
self.top.fi.close()
# reset empty defaults of top
self.top.dunlim = '' # name of unlimited dimension
self.top.time = None # datetime variable
self.top.tname = '' # datetime variable name
self.top.tvar = '' # datetime variable name in netcdf
self.top.dtime = None # decimal year
self.top.latvar = '' # name of latitude variable
self.top.lonvar = '' # name of longitude variable
self.top.latdim = '' # name of latitude dimension
self.top.londim = '' # name of longitude dimension
self.top.maxdim = 0 # maximum num of dims of all variables
self.top.cols = [] # variable list
# open new netcdf file
self.top.fi = nc.Dataset(ncfile, 'r')
analyse_netcdf(self.top)
# reset panel
self.reinit()
self.redraw()
[docs] def nrun_t(self):
"""
Command called if forward run button was pressed.
"""
if not self.anim_running:
self.anim_inc = 1
self.anim.event_source.start()
self.anim_running = True
[docs] def next_t(self):
"""
Command called if next frame button was pressed.
"""
it = int(self.vdval[self.iunlim].get())
if it < self.nunlim-1:
it += 1
self.set_tstep(it)
self.update(it, isframe=True)
else:
rep = self.repeat.get()
if rep != 'once':
if rep == 'repeat':
it = 0
else: # reflect
it -= 1
self.set_tstep(it)
self.update(it, isframe=True)
[docs] def next_v(self):
"""
Command called if next button for the plotting variable was pressed.
Resets `vmin`/`vmax` and variable-dimensions. Redraws plot.
"""
v = self.v.get()
cols = self.v["values"]
idx = cols.index(v)
idx += 1
if idx < len(cols):
self.v.set(cols[idx])
self.set_unlim(cols[idx])
self.tstep['to'] = self.nunlim - 1
self.set_tstep(0)
vmin, vmax = self.get_vminmax()
self.vmin.set(vmin)
self.vmax.set(vmax)
set_dim_var(self)
self.redraw()
[docs] def pause_t(self):
"""
Command called if pause button was pressed.
"""
if self.anim_running:
self.anim.event_source.stop()
self.anim_running = False
[docs] def prev_t(self):
"""
Command called if previous frame button was pressed.
"""
it = int(self.vdval[self.iunlim].get())
if it > 0:
it -= 1
self.set_tstep(it)
self.update(it, isframe=True)
else:
rep = self.repeat.get()
if rep != 'once':
if rep == 'repeat':
it = self.nunlim - 1
else: # reflect
it += 1
self.set_tstep(it)
self.update(it, isframe=True)
[docs] def prev_v(self):
"""
Command called if previous button for the plotting variable was
pressed.
Resets `vmin`/`vmax` and v-dimensions. Redraws plot.
"""
v = self.v.get()
cols = self.v["values"]
idx = cols.index(v)
idx -= 1
if idx > 0:
self.v.set(cols[idx])
self.set_unlim(cols[idx])
self.tstep['to'] = self.nunlim - 1
self.set_tstep(0)
vmin, vmax = self.get_vminmax()
self.vmin.set(vmin)
self.vmax.set(vmax)
set_dim_var(self)
self.redraw()
[docs] def prun_t(self):
"""
Command called if run backwards button was pressed.
"""
if not self.anim_running:
self.anim_inc = -1
self.anim.event_source.start()
self.anim_running = True
[docs] def repeat_t(self, event):
"""
Command called if repeat option was chosen with combobox.
Triggering `event` was bound to the combobox.
"""
rep = self.repeat.get()
if rep == 'once':
irepeat = False
else:
# need not to stop also for reflect
irepeat = True
self.anim.repeat = irepeat
[docs] def selected_cmap(self, value):
"""
Command called if cmap was chosen from menu.
`value` is the chosen colormap.
Sets text and image on the menubutton.
"""
self.cmap['text'] = value
self.cmap['image'] = self.imaps[self.cmaps.index(value)]
self.redraw()
[docs] def selected_lat(self, event):
"""
Command called if latitude-variable was selected with combobox.
Triggering `event` was bound to the combobox.
Resets `lat` options and dimensions. Redraws plot.
"""
self.inv_lat.set(0)
set_dim_lat(self)
self.redraw()
[docs] def selected_lon(self, event):
"""
Command called if x-variable was selected with combobox.
Triggering `event` was bound to the combobox.
Resets `x` options and dimensions. Redraws plot.
"""
self.inv_lon.set(0)
self.shift_lon.set(0)
set_dim_lon(self)
self.redraw()
[docs] def selected_proj(self, value):
"""
Command called if projection was chosen from menu.
`value` is the chosen projection.
Sets text on the menubutton.
"""
self.proj['text'] = value
self.redraw()
[docs] def selected_v(self, event):
"""
Command called if plotting variable was selected with combobox.
Triggering `event` was bound to the combobox.
Resets `vmin`/`vmax` and variable-dimensions. Redraws plot.
"""
v = self.v.get()
self.set_unlim(v)
self.tstep['to'] = self.nunlim - 1
self.set_tstep(0)
vmin, vmax = self.get_vminmax()
self.vmin.set(vmin)
self.vmax.set(vmax)
set_dim_var(self)
self.redraw()
[docs] def spinned_lon(self, event=None):
"""
Command called if spinbox of x-dimensions was changed.
Triggering `event` was bound to the spinbox.
Redraws plot.
"""
self.redraw()
[docs] def spinned_lat(self, event=None):
"""
Command called if spinbox of latitude-dimensions was changed.
Triggering `event` was bound to the spinbox.
Redraws plot.
"""
self.redraw()
[docs] def spinned_v(self, event=None):
"""
Command called if spinbox of variable-dimensions was changed.
Triggering `event` was bound to the spinbox.
Redraws plot.
"""
try:
it = int(self.vdval[self.iunlim].get())
self.set_tstep(it)
except ValueError: # mean, std, etc.
pass
self.redraw()
[docs] def tstep_t(self, step):
"""
Command called if tstep was changed.
`step` is the chosen value on the scale slider.
"""
it = int(float(step))
self.set_tstep(it)
self.update(it, isframe=True)
#
# Methods
#
[docs] def get_vminmax(self):
from numpy.random import default_rng
v = self.v.get()
if (v != ''):
vz = vardim2var(v)
if vz == self.tname:
return (0, 1)
vv = self.fi.variables[vz]
imiss = get_miss(self, vv)
iall = self.vall.get()
if iall or (np.sum(vv.shape[:-2]) < 50):
vv = set_miss(imiss, vv)
vmin = np.nanmin(vv)
vmax = np.nanmax(vv)
else:
rng = default_rng()
vmin = np.inf
vmax = -np.inf
for nn in range(50):
ss = []
for i in range(vv.ndim):
if i < vv.ndim-2:
idim = rng.integers(0, vv.shape[i])
s = slice(idim, idim+1)
else:
s = slice(0, vv.shape[i])
ss.append(s)
ivv = vv[tuple(ss)]
ivv = set_miss(imiss, ivv)
ivmin = np.nanmin(ivv)
ivmax = np.nanmax(ivv)
vmin = min(vmin, ivmin)
vmax = max(vmax, ivmax)
return (vmin, vmax)
else:
return (0, 1)
[docs] def reinit(self):
"""
Reinitialise the panel from top.
"""
# reinit from top
self.fi = self.top.fi
self.miss = self.top.miss
self.dunlim = self.top.dunlim
self.time = self.top.time
self.tname = self.top.tname
self.tvar = self.top.tvar
self.dtime = self.top.dtime
self.latvar = self.top.latvar
self.lonvar = self.top.lonvar
self.latdim = self.top.latdim
self.londim = self.top.londim
self.maxdim = self.top.maxdim
self.cols = self.top.cols
self.iunlim = -1
self.nunlim = 0
# reset dimensions
for ll in self.vdlbl:
ll.destroy()
for ll in self.vd:
ll.destroy()
self.vdlblval = []
self.vdlbl = []
self.vdval = []
self.vd = []
self.vdtip = []
for i in range(self.maxdim):
vdlblval, vdlbl, vdval, vd, vdtip = add_spinbox(
self.rowvd, label=str(i), values=(0,), wrap=True,
command=self.spinned_v, state=tk.DISABLED, tooltip="None")
self.vdlblval.append(vdlblval)
self.vdlbl.append(vdlbl)
self.vdval.append(vdval)
self.vd.append(vd)
self.vdtip.append(vdtip)
for ll in self.latdlbl:
ll.destroy()
for ll in self.latd:
ll.destroy()
self.latdlblval = []
self.latdlbl = []
self.latdval = []
self.latd = []
self.latdtip = []
for i in range(self.maxdim):
latdlblval, latdlbl, latdval, latd, latdtip = add_spinbox(
self.rowlatd, label=str(i), values=(0,), wrap=True,
command=self.spinned_lat, state=tk.DISABLED, tooltip="None")
self.latdlblval.append(latdlblval)
self.latdlbl.append(latdlbl)
self.latdval.append(latdval)
self.latd.append(latd)
self.latdtip.append(latdtip)
for ll in self.londlbl:
ll.destroy()
for ll in self.lond:
ll.destroy()
self.londlblval = []
self.londlbl = []
self.londval = []
self.lond = []
self.londtip = []
for i in range(self.maxdim):
londlblval, londlbl, londval, lond, londtip = add_spinbox(
self.rowlond, label=str(i), values=(0,), wrap=True,
command=self.spinned_lon, state=tk.DISABLED, tooltip="None")
self.londlblval.append(londlblval)
self.londlbl.append(londlbl)
self.londval.append(londval)
self.lond.append(lond)
self.londtip.append(londtip)
# set time step
self.tstep['to'] = 0
self.tstepval.set(0)
self.repeat.set('repeat')
# set variables
columns = [''] + self.cols
self.v['values'] = columns
self.v.set(columns[0])
self.vmin.set('None')
self.vmax.set('None')
# set lat/lon
self.lon['values'] = columns
self.lon.set(columns[0])
self.lat['values'] = columns
self.lat.set(columns[0])
if self.latvar:
self.lat.set(self.latvar)
self.inv_lat.set(0)
set_dim_lat(self)
if self.lonvar:
self.lon.set(self.lonvar)
self.inv_lon.set(0)
self.shift_lon.set(0)
set_dim_lon(self)
x = self.lon.get()
if (x != ''):
vx = vardim2var(x)
xx = self.fi.variables[vx]
xx = get_slice_miss(self, self.lond, xx)
xx = xx + 360.
if (xx.max() - xx.min()) > 150.:
self.iglobal.set(1)
else:
self.iglobal.set(0)
[docs] def set_tstep(self, it):
"""
Make all steps when changing time step.
`it` (int) is the time step.
Sets the time dimension spinbox, sets the time step scale,
write the time on top.
"""
self.vdval[self.iunlim].set(it)
self.tstepval.set(it)
try:
self.timelbl.set(np.around(self.time[it], 4))
except TypeError:
self.timelbl.set(self.time[it])
[docs] def set_unlim(self, v):
"""
Set index and length of unlimited dimension of variable `v`.
`v` (str) is the variable name as in the selection comboboxes, i.e.
`var = vardim2var(self.fi.variables[v)]`.
Sets `self.nunlim` to the length of the unlimited dimension and
`self.iunlim` to the index in variable.dimensions if
`self.dunlim ~= ''` and `self.dunlim` in var.dimensions.
Takes `self.iunlim=0` and `self.nunlim=variable.shape[0]` if
self.dunlim == ''` or `self.dunlim` not in var.dimensions.
"""
vz = vardim2var(v)
if vz == self.tname:
self.iunlim = 0
self.nunlim = self.time.size
else:
if self.dunlim:
if self.dunlim in self.fi.variables[vz].dimensions:
self.iunlim = (
self.fi.variables[vz].dimensions.index(self.dunlim))
else:
self.iunlim = 0
else:
self.iunlim = 0
self.nunlim = self.fi.variables[vz].shape[self.iunlim]
#
# Plotting
#
[docs] def redraw(self):
"""
Redraws the plot.
Reads `lon`, `lat`, `variable` names, the current settings of
their dimension spinboxes, as well as all other plotting options.
Then redraws the plot.
"""
# stop animation
self.anim.event_source.stop()
self.anim_running = False
# get all states
# rowv
v = self.v.get()
trans_v = self.trans_v.get()
vmin = self.vmin.get()
if vmin == 'None':
vmin = None
else:
try:
vmin = float(vmin)
except ValueError:
vmin = None
vmax = self.vmax.get()
if vmax == 'None':
vmax = None
else:
try:
vmax = float(vmax)
except ValueError:
vmax = None
# rowll
x = self.lon.get()
y = self.lat.get()
inv_lon = self.inv_lon.get()
inv_lat = self.inv_lat.get()
shift_lon = self.shift_lon.get()
# rowcmap
cmap = self.cmap['text']
rev_cmap = self.rev_cmap.get()
mesh = self.mesh.get()
self.iiglobal = self.iglobal.get()
grid = self.grid.get()
coast = self.coast.get()
proj = self.proj['text']
self.iproj = self.iprojs[self.projs.index(proj)]
clon = self.clon.get()
# set x, y, axes labels
vx = 'None'
vy = 'None'
vz = 'None'
if (v != ''):
# variable
vz = vardim2var(v)
if vz == self.tname:
# should throw an error later
if mesh:
vv = self.dtime
vlab = 'Year'
else:
vv = self.time
vlab = 'Date'
else:
vv = self.fi.variables[vz]
vlab = set_axis_label(vv)
vv = get_slice_miss(self, self.vd, vv)
if trans_v:
vv = vv.T
if shift_lon:
vv = np.roll(vv, vv.shape[1]//2, axis=1)
else:
vlab = ''
if (y != ''):
# y axis
vy = vardim2var(y)
if vy == self.tname:
if mesh:
yy = self.dtime
ylab = 'Year'
else:
yy = self.time
ylab = 'Date'
else:
yy = self.fi.variables[vy]
ylab = set_axis_label(yy)
yy = get_slice_miss(self, self.latd, yy)
else:
ylab = ''
if (x != ''):
# x axis
vx = vardim2var(x)
if vx == self.tname:
if mesh:
xx = self.dtime
xlab = 'Year'
else:
xx = self.time
xlab = 'Date'
else:
xx = self.fi.variables[vx]
xlab = set_axis_label(xx)
xx = get_slice_miss(self, self.lond, xx)
# set central longitude of projection
# make in 0-360, otherwise always 0 if -180 to 180
xx360 = (xx + 360.) % 360.
if xx.size > 1:
if xx.ndim > 1:
x0 = xx[:, 0].mean()
if self.iiglobal:
# -2 instead of -1 to avoid possible cyclic longitude
x1 = xx[:, -2].mean()
else:
x1 = xx[:, -1].mean()
else:
x0 = xx[0]
if self.iiglobal:
x1 = xx[-2]
else:
x1 = xx[-1]
self.ixxmean = 0.5*(x1+x0)
if self.iiglobal:
# round it to next 180 degrees to get 0 or 180
self.ixxmean = np.around(self.ixxmean / 180., 0) * 180.
else:
self.ixxmean = xx360[0]
# seems to work better if central lon in projection
# is set from -180 to 180 even if lon is given in 0-360
if self.ixxmean > 180.:
self.ixxmean -= 360.
else:
xlab = ''
self.ixxmean = 0.
if clon != 'None':
self.iclon = float(clon)
else:
self.iclon = self.ixxmean
# plot options
if rev_cmap:
cmap = cmap + '_r'
# Clear figure instead of axes because colorbar is on figure
self.figure.clear()
# Have to add axes again.
self.axes = self.figure.add_subplot(
111, projection=self.iproj(central_longitude=self.iclon))
# plot only if variable given
if (v != ''):
if vv.ndim < 2:
estr = 'Map: var (' + vz + ') is not 2-dimensional:'
print(estr, vv.shape)
return
# set x and y to index if not selected
if (x == ''):
nx = vv.shape[1]
xx = -180. + np.arange(nx) * 360./float(nx)
xx += 0.5 * (xx[1] - xx[0])
xlab = ''
if (y == ''):
ny = vv.shape[0]
yy = np.arange(ny) * 180./float(ny) - 90.
yy += 0.5 * (yy[1] - yy[0])
ylab = ''
# plot
# cc = self.axes.imshow(vv[:, ::-1].T, aspect='auto', cmap=cmap,
# interpolation='none')
# cc = self.axes.matshow(vv[:, ::-1].T, aspect='auto', cmap=cmap,
# interpolation='none')
extend = 'neither'
if vmin is not None:
vv = np.maximum(vv, vmin)
if vmax is None:
extend = 'min'
else:
extend = 'both'
if vmax is not None:
vv = np.minimum(vv, vmax)
if vmin is None:
extend = 'max'
else:
extend = 'both'
if (xx.ndim == 1) and (yy.ndim == 1):
self.ixx, self.iyy = np.meshgrid(xx, yy)
elif (xx.ndim == 1) and (yy.ndim == 2):
self.ixx, tmp = np.meshgrid(xx, yy[:, 0])
self.iyy = yy
elif (xx.ndim == 2) and (yy.ndim == 1):
self.ixx, self.iyy = np.meshgrid(xx, yy)
tmp, self.iyy = np.meshgrid(xx[0, :], yy)
self.ixx = xx
elif (xx.ndim == 2) and (yy.ndim == 2):
self.ixx = xx
self.iyy = yy
else:
estr = 'Map: lon (' + vx + '), lat (' + vy + ')'
estr += ' dimensions not 1D or 2D:'
print(estr, xx.shape, yy.shape)
return
if inv_lon:
self.ixx = np.fliplr(self.ixx)
if inv_lat:
self.iyy = np.flipud(self.iyy)
self.ivv = vv
if self.iiglobal:
# cartopy.contourf needs cyclic longitude for wrap around
self.ivvc, self.ixxc, self.iyyc = add_cyclic_point(
self.ivv, coord=self.ixx, rowcoord=self.iyy)
else:
self.ivvc = self.ivv
self.ixxc = self.ixx
self.iyyc = self.iyy
self.itrans = ccrs.PlateCarree()
self.ivmin = vmin
self.ivmax = vmax
self.icmap = cmap
self.ncmap = mpl.cm.get_cmap(self.icmap).N
self.ncmap = self.ncmap if self.ncmap < 256 else 15
self.iextend = extend
# self.img_extent = (xx.min(), xx.max(), yy.min(), yy.max())
# print(self.ixx.min(), self.ixx.max(), self.iyy.min(), self.iyy.max())
if mesh:
try:
# vv is matrix notation: (row, col)
# self.cc = self.axes.pcolormesh(
# xx, yy, vv, vmin=vmin, vmax=vmax, cmap=cmap,
# shading='nearest')
self.cc = self.axes.pcolormesh(
self.ixx, self.iyy, self.ivv,
vmin=self.ivmin, vmax=self.ivmax,
cmap=self.icmap, shading='nearest',
transform=self.itrans)
# self.cc = self.axes.imshow(
# vv, vmin=vmin, vmax=vmax, cmap=cmap,
# origin='upper', extent=self.img_extent,
# transform=self.itrans)
self.cb = self.figure.colorbar(self.cc, fraction=0.05,
shrink=0.75,
extend=self.iextend)
except Exception:
estr = 'Map pcolormesh: lon (' + vx + '), '
estr += ' lat (' + vy + '), var (' + vz + ') shapes do not'
estr += ' match:'
print(estr, self.ixx.shape, self.iyy.shape, self.ivv.shape)
return
else:
try:
# if 1-D then len(x)==m (columns) and
# len(y)==n (rows): v(n,m)
self.cc = self.axes.contourf(
self.ixxc, self.iyyc, self.ivvc, self.ncmap,
vmin=self.ivmin, vmax=self.ivmax,
cmap=self.icmap, extend=self.iextend,
transform=self.itrans)
self.cb = self.figure.colorbar(self.cc, fraction=0.05,
shrink=0.75)
# self.cc, = self.axes.plot(yy, vv[0,:])
except Exception:
estr = 'Map contourf: lon (' + vx + '), lat (' + vy + '),'
estr += ' var (' + vz + ') shapes do not match for:'
print(estr, self.ixxc.shape, self.iyyc.shape,
self.ivvc.shape)
return
self.cb.set_label(vlab)
# help(self.figure)
if self.iiglobal:
self.axes.set_global()
if coast:
self.axes.coastlines()
self.axes.gridlines(draw_labels=True, linewidth=0,
x_inline=False, y_inline=False)
self.axes.xaxis.set_label_text(xlab)
self.axes.yaxis.set_label_text(ylab)
if grid:
self.axes.gridlines(draw_labels=False,
x_inline=False, y_inline=False)
# redraw
self.canvas.draw()
self.toolbar.update()
# def update(self, frame, isframe=False):
# pass
[docs] def update(self, frame, isframe=False):
"""
Updates data of the current the plot.
"""
if self.anim_first:
self.anim.event_source.stop()
self.anim_running = False
self.anim_first = False
return
# variable
v = self.v.get()
if (v != ''):
trans_v = self.trans_v.get()
mesh = self.mesh.get()
rep = self.repeat.get()
inv_lon = self.inv_lon.get()
inv_lat = self.inv_lat.get()
shift_lon = self.shift_lon.get()
vz = vardim2var(v)
if vz == self.tname:
vz = self.tvar
vv = self.fi.variables[vz]
# slice
try:
it = int(self.vdval[self.iunlim].get())
if not isframe:
if (self.anim_inc == 1) and (it == self.nunlim-1):
if rep == 'repeat':
it = 0
elif rep == 'reflect':
self.anim_inc = -1
it += self.anim_inc
else: # once
self.anim.event_source.stop()
self.anim_running = False
elif (self.anim_inc == -1) and (it == 0):
if rep == 'repeat':
it = self.nunlim - 1
elif rep == 'reflect':
self.anim_inc = 1
it += self.anim_inc
else: # once
self.anim.event_source.stop()
self.anim_running = False
else:
it += self.anim_inc
except ValueError:
it = 0
self.set_tstep(it)
vv = get_slice_miss(self, self.vd, vv)
if vv.ndim < 2:
self.anim.event_source.stop()
self.anim_running = False
return
if trans_v:
vv = vv.T
if shift_lon:
vv = np.roll(vv, vv.shape[1]//2, axis=1)
self.ivv = vv
# set data
if mesh:
# update works well on "normal" pcolormesh but not on Cartopy's
# self.cc.set_array(vv)
# Both, imshow and pcolormesh need to remove the old
# image.AxesImage or collections.QuadMesh first and then redraw
# because the set_data (imshow) and set_array (pcolormesh) do
# not respect transformations.
self.cc.remove()
self.cc = self.axes.pcolormesh(
self.ixx, self.iyy, self.ivv,
vmin=self.ivmin, vmax=self.ivmax,
cmap=self.icmap, shading='nearest',
transform=self.itrans)
# self.cc.remove()
# self.cc = self.axes.imshow(
# vv, vmin=self.ivmin, vmax=self.ivmax, cmap=self.icmap,
# origin='upper', extent=self.img_extent,
# transform=self.itrans)
else:
# http://matplotlib.1069221.n5.nabble.com/update-an-existing-contour-plot-with-new-data-td23889.html
for coll in self.cc.collections:
self.axes.collections.remove(coll)
if self.iiglobal:
self.ivvc = add_cyclic_point(self.ivv)
else:
self.ivvc = self.ivv
self.cc = self.axes.contourf(
self.ixxc, self.iyyc, self.ivvc, self.ncmap,
vmin=self.ivmin, vmax=self.ivmax,
cmap=self.icmap, extend=self.iextend,
transform=self.itrans)
self.canvas.draw()
return self.cc,
